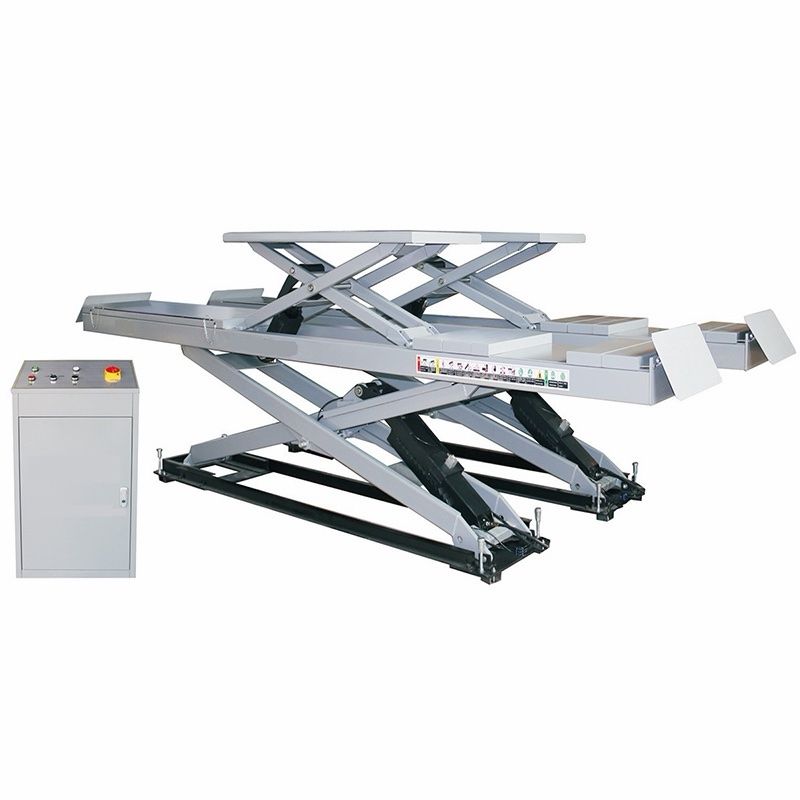

4-Ton Professional Under-Ground Scissor Lift, 220V, JH-L4000 with Secondary Lift & Control Box

4-Ton Professional Under-Ground Scissor Lift, 220V, JH-L4000 with Secondary Lift & Control Box

The JH-L4000 4-Ton In-Ground Scissor Lift is designed for premium automotive service centers that demand absolute space efficiency and professional-grade performance. Operating on a 220V power supply, this heavy-duty dual-structure lift integrates seamlessly into your workshop floor, leaving a completely flat and unobstructed surface when lowered.

Key Features & Technical Advantages:
• Space-Saving In-Ground Structure: Hidden flat configuration minimizes garage clutter, allowing vehicle positioning flexibility when the lift is not active.
• Integrated Secondary Lift: Main runways elevate up to 1750mm, while the auxiliary built-in lift extends an extra 450mm (length: 1500mm / width: 550mm) for quick wheel-free wheel alignment and brake servicing.
• Premium Hydraulic Valve Block: Utilizes an integrated hydraulic valve plate system paired with premium imported seals, maximizing overall stability and mechanical longevity.
• Pneumatic Self-Locking: Reliable compressed-air mechanical safety mechanism safeguards technicians under heavy loads.
• Emergency Manual Interface: Equipped with a pre-engineered manual bypass interface to safely lower vehicles even during sudden power outages.

Technical Specifications:

• Model – L4000
• Lifting Capacity– 4 000 kg
• Min. Height – 220 mm
• Lifting Height – 1750 mm
• Runway Lenght  – 4200/4500 mm
• Platform  width – 600 mm
• Second Platform Lifting Height – 450 mm
• Second Platform Length – 1500 mm
• Second Lift Platform Width – 550 mm
• Distance Between Platforms – 900 mm

Packaging and Weight:

• Packing Mode: Polywood case
• Gross Weight: 1850 kg

Made in China

Code: 51411

International shipment available. Please ask for price
