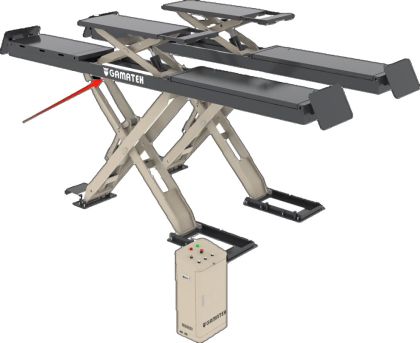

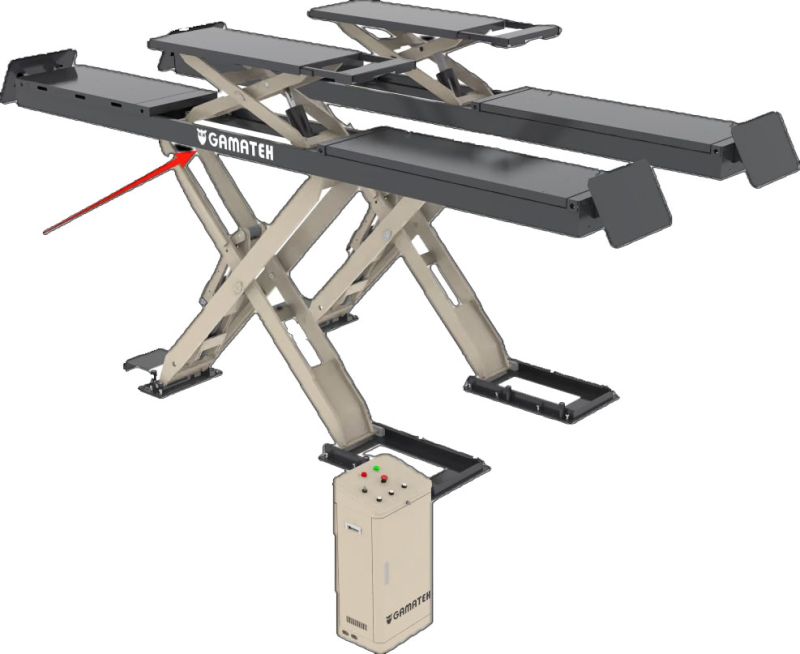

4T Wheel Alignment Scissor Lift - High-Rise with Secondary Lift TS401.HR

Elevate your automotive service capabilities with the TS401.HR 4t Wheel Alignment Scissor Lift. This high-rise lift combines robust engineering with advanced safety features, designed to enhance efficiency and precision in your workshop. Perfect for wheel alignments and general vehicle maintenance, the TS401.HR is a reliable and versatile solution for professional automotive technicians.

Key Features:

• Mechanical Hydraulic System: Equipped with a cylinder (main+slave) set on each platform, ensuring smooth and powerful lifting performance.
• Secondary Platform Extension: Features a single-end pulling extension on the secondary platform, providing added flexibility for various vehicle types.
• Explosion-Proof Valve: Each cylinder includes an explosion-proof valve for enhanced safety, minimizing potential hazards.
• Hydraulic Distribution Valve Kit: Ensures precise and balanced hydraulic pressure distribution, crucial for stable and controlled lifting.
• Integrated Lubrication: Built-in grease lubrication on the pivot points reduces friction and extends the lift's lifespan.
• Pneumatic Security Lock Release: Offers a reliable and secure locking mechanism with a pneumatic release for added safety.
• Electric Control Panel: Operates on a safe 24V voltage, providing user-friendly control and enhanced safety.
• Dynamic Synchronization Monitoring: Includes a dynamic synchronization mini monitoring kit to maintain platform alignment during lifting.
• Photocell Technology: Utilizes a photocell (through-beam sensor) for precise positioning and safety.
• Electric Foot Guard Kit: Enhances safety by preventing accidental foot entrapment during operation.
• Up-Limit Switch: Prevents over-lifting, ensuring the safety of both the vehicle and the equipment.
• Emergency Switch: Allows for immediate shutdown in case of emergencies, enhancing workplace safety.
• Drop Alarm: Includes an audible beeping alarm to alert users of any potential drop, ensuring timely response and preventing accidents.

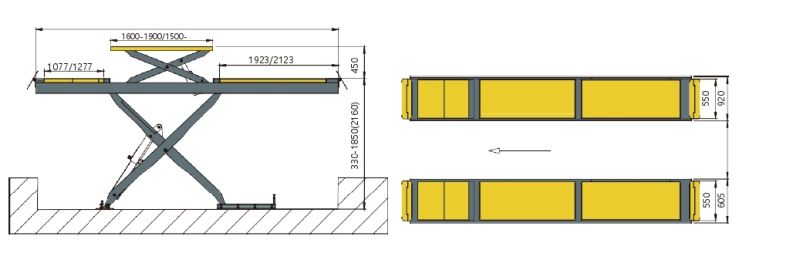

Technical Specifications:

• Model: TS401.HR
• Capacity: 4,000 kg (4t)
• Minimum Height: 330 mm
• Main Lift Height: 2,160 mm
• Main Lift Platform Length: 4,500 mm
• Main Lift Platform Width: 605 mm
• Second Platform Lifting Height: 450 mm
• Second Platform Length: Adjustable from 1,500 to 1,800 mm
• Second Lift Platform Width: 550 mm
• Distance Between Platforms: 900 mm

Safety and Reliability:

The TS401.HR is engineered with multiple safety features to ensure a secure working environment. The explosion-proof valves, up-limit switch, emergency switch, and drop alarm provide layers of protection, minimizing risks during operation. The dynamic synchronization monitoring kit guarantees even lifting, preventing vehicle damage and ensuring technician safety.

Durable Construction:

Built to withstand the demands of a busy workshop, the TS401.HR features robust construction and high-quality materials. The built-in grease lubrication system ensures smooth operation and prolongs the life of the lift, reducing maintenance costs and downtime.

Easy to Use and Install:

The electric control panel with a 24V safe voltage operation makes the lift easy to control and operate. The lift is packed in a polywood case for safe transportation, with a gross weight of 2,150 kg.

Packaging and Weight:

• Packing Mode: Polywood case
• Gross Weight: 2,150 kg

Made in China

Code: 51411

International shipment available. Please ask for price
