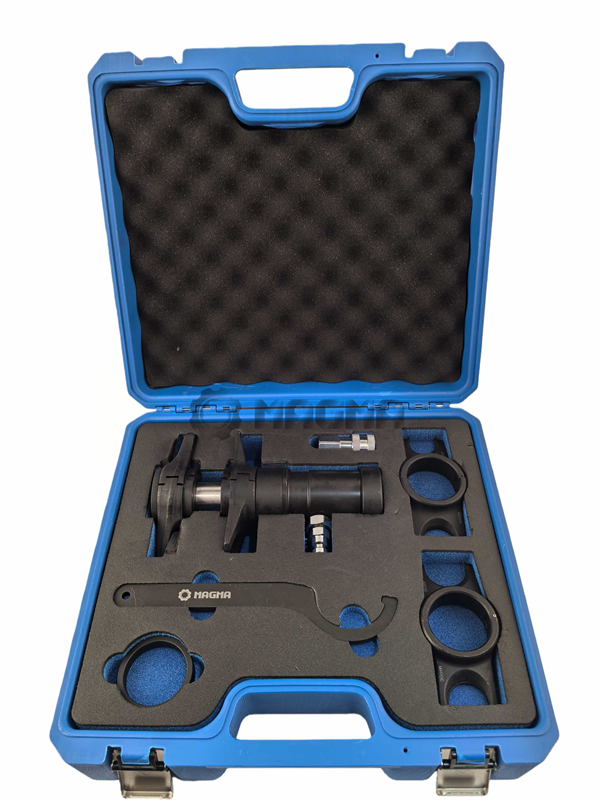

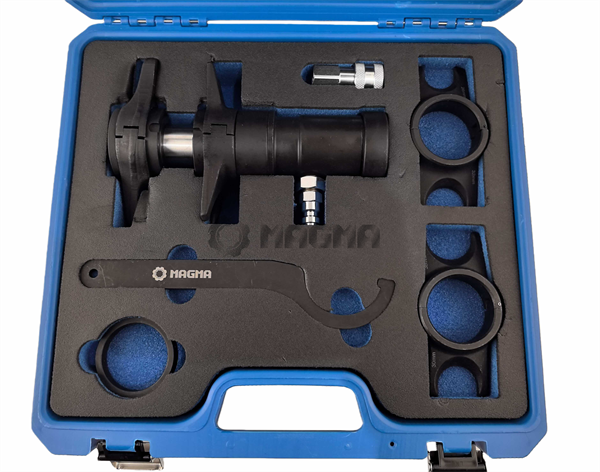

4.5-Ton Heavy-Duty Hydraulic Ball Joint Separator & Extractor Kit, 51478

4.5-Ton Heavy-Duty Hydraulic Ball Joint Separator & Extractor Kit, 51478

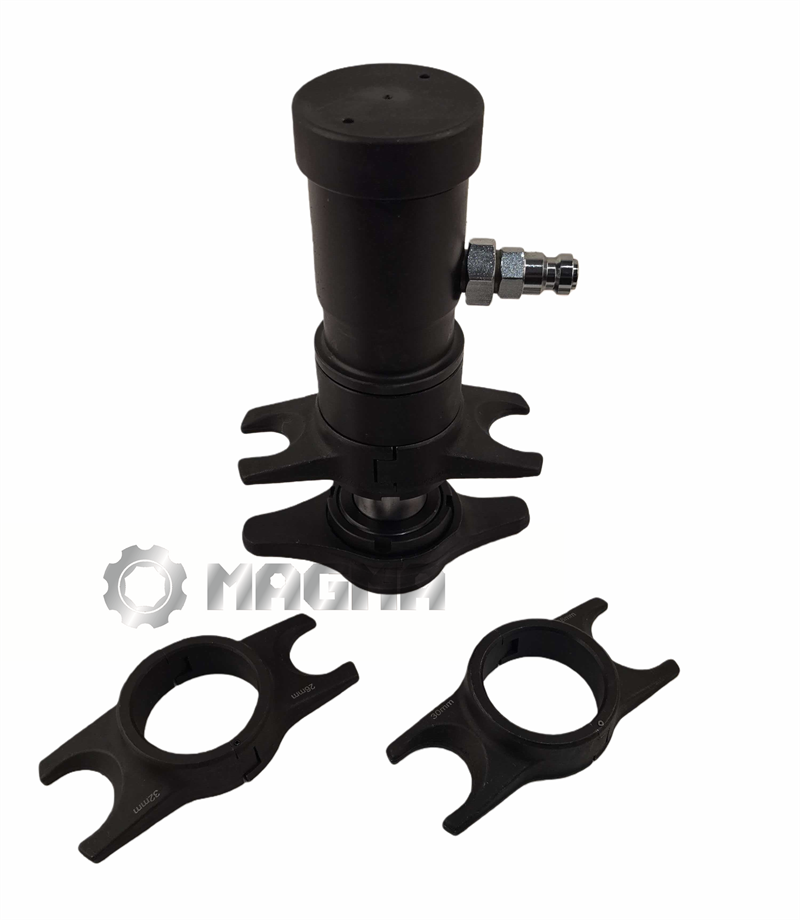

The Hydraulic Ball Joint Separation System is an essential, high-capacity workshop maintenance solution engineered to seamlessly break loose stubbornly frozen, tapered ball joints and tie rod links. While generic mechanical pullers risk shearing threads or fracturing structural aluminum steering knuckles under severe strain, this heavy-duty tool utilizes an integrated internal fluid ram to exert a smooth, constant, and concentrated linear push-force of 4.5 tons.
The modular design stands out with its three double-sided multi-fit structural fork jaws, providing a highly flexible configuration scale tracking 19mm, 26mm, 28mm, 30mm, 32mm, and 36mm openings. CNC-machined from multi-hardened structural forged alloy steel, it delivers supreme reliability across demanding commercial auto bays.

Technical Data:
Tool Classification: Professional Hydraulic Ball Joint / Tie Rod Extractor
Pressing Force Capacity: 4.5 Tons
Vertical Working Stroke Range: 60 mm to 72 mm
Interchangeable Fork Jaw Sizes: 19, 26, 28, 30, 32, and 36 mm (via 3 dual-sided plates)
Industrial Quick Connect plug
Material Compound: Drop-forged structural carbon alloy tool steel
Fleet Compatibility: Universal utility layout optimized for modern passenger vehicles, SUVs, and light commercial delivery vans

Made in China

Packing:
38*39*14 cm
N.W.: 6.750 kg
G.W.: 6.900 kg

International shipment available. Please ask for price.
