Spiral Hose Nozzle & Fitting 6.5 x 10 mm, 9100286
-
Code:125903
-
Weight:0.060 Kgs
Spiral Hose Nozzle & Fitting 6.5 x 10 mm, 9100286
Professional nickel-plated brass hose fitting and nozzle for 6.5x10mm pneumatic spiral tubing, engineered for a secure, airtight lock and leak-free performance.
Made in China
Estimated Shipping
outside Varna starts at
€3.65
to Varna starts at
€3.65
to Varna starts at
€2.96
outside Varna starts at
€3.09
Quick Buy
Spiral Hose Nozzle & Fitting 6.5 x 10 mm, 9100286

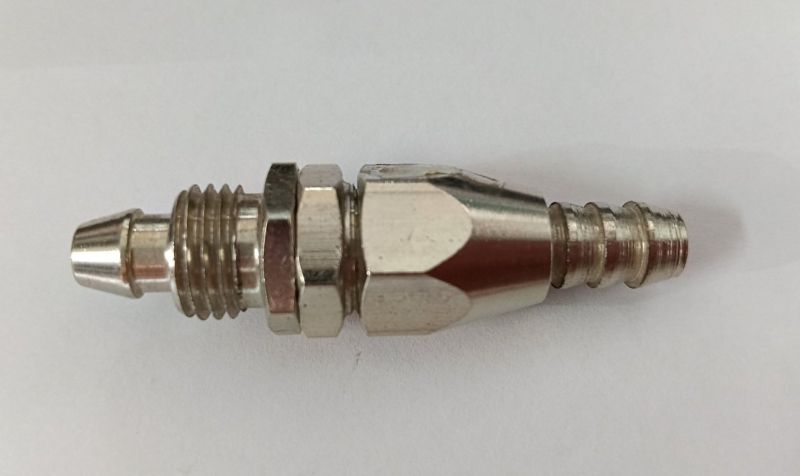

This heavy-duty air compressor line nozzle adapter connection fitting (part number 9100286) is precisely engineered for the repair, extension, or terminal assembly of polyurethane (PU) and polyamide (PA) pneumatic spiral hoses. Specifically dimensioned for tubes with a 6.5mm internal diameter and a 10mm external diameter, the mechanical nut-lock connector clamps down over the tubing walls from both sides. This advanced multi-lock assembly prevents accidental blowout under sudden pressure shifts. The opposite barbed-to-threaded nozzle terminal seamlessly routes high-volume pneumatic media into garage air lines, impact tools, blowing nozzles, or sandblasting equipment.
Part Number: 9100286
Hose Size Compatibility: 6.5 x 10 mm (Internal ID 6.5mm / External OD 10mm)
Connection Type: Compression mechanical lock for spiral polymer hoses
Material Compound: Premium structural industrial nickel-plated brass (corrosion-free)
Media Application: Compressed structural workshop air, vacuum lines, inert gases
Maximum Safe Pressure: Up to 15 bar (approx. 215 PSI)
Made in China
Packing:
7*3*3 cm
N.W.: 0.050 kg
G.W.: 0.060 kg
Code: 90133
International shipment available. Please ask for price.
